From Slope Movement to Early Warning: Landslide Monitoring with Sensors and Telemetry

Slopes do not always show visible signs of change before movement occurs. Fine cracks, increasing moisture, changes in inclination, and small displacements can develop gradually and remain difficult to recognize through visual observation alone.

In areas such as road slopes, mining sites, dams, construction projects, and hillside settlements, periodic monitoring can help technical teams understand changing conditions over time.

A Landslide Monitoring System integrates geotechnical sensors, dataloggers, telemetry, servers, and monitoring dashboards to help engineers observe slope parameters in a measurable, periodic, and documented manner.

Why Should Slope Movement Be Monitored?

Landslides are complex phenomena influenced by factors such as slope geometry, soil and rock conditions, rainfall, pore water pressure, drainage, and human activity.

For this reason, no single sensor can independently describe the overall stability of a slope.

Monitoring helps engineers observe changes in geotechnical parameters and compare them with historical measurements.

Recorded data forms a time-series, allowing small changes that are difficult to detect visually to appear as trends over time.

Geotechnical Sensors for Slope Monitoring

The configuration of a Landslide Monitoring System should follow geotechnical assessment results and site characteristics.

Commonly monitored parameters include:

• Displacement Sensors, to observe changes in soil or structural position;

• Inclinometers, to measure lateral deformation profiles with depth and help identify zones of movement within a slope;

• Tiltmeters, to monitor changes in inclination at selected points;

• Piezometers, to monitor pore water pressure as an important parameter in slope stability evaluation;

• Automatic Rainfall Recorders (ARR), to record rainfall; and

• Vibration Sensors, when traffic, construction, or blasting activities are relevant to the monitoring objective.

System effectiveness is determined not by the number of sensors installed, but by how well the selected parameters match the movement mechanism being observed.

Why Should Rainfall and Geotechnical Data Be Read Together?

Rainfall can be an important triggering factor in many slope movement events.

Rainwater infiltration can increase soil moisture and, under certain conditions, pore water pressure. Increased pore water pressure can reduce effective stress and influence slope stability.

For this reason, rainfall data becomes more informative when evaluated together with piezometer, tiltmeter, inclinometer, or other movement sensor data.

A multisensor approach helps geotechnical teams observe the relationship between rainfall conditions and slope response over time.

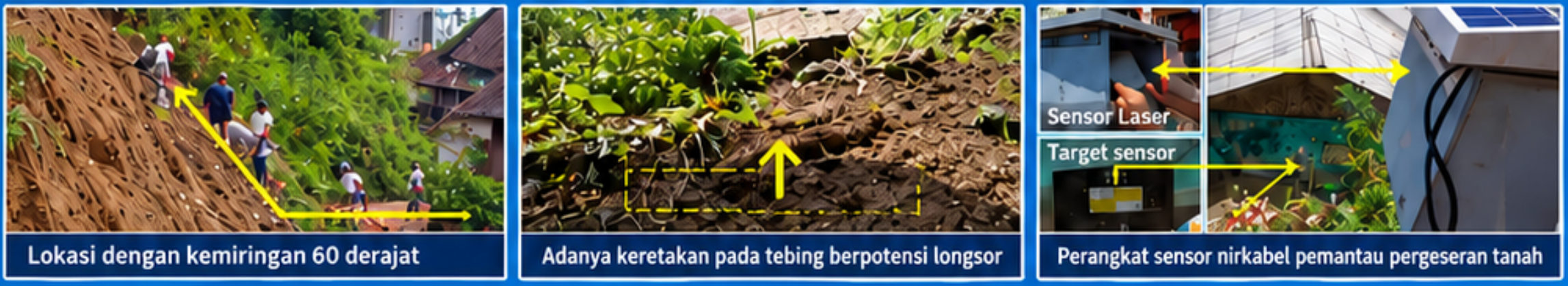

Figure 1. Examples of field conditions in landslide-prone areas, including steep slopes, ground cracks, and sensor installation for movement monitoring.

Telemetry and Monitoring Dashboards

Many landslide-prone areas are located in sites with limited access.

Through telemetry, sensor data can be transmitted automatically to a server using the available communication network. Field personnel do not need to visit every monitoring point simply to retrieve data.

A monitoring dashboard can display:

• current parameter values;

• trend and historical charts;

• sensor locations;

• device communication status; and

• indicators based on predefined monitoring thresholds.

When a parameter exceeds a defined threshold, the system can be configured to issue a notification.

A notification does not automatically mean that a landslide will occur. Its purpose is to indicate that a change requires prompt verification and technical evaluation.

Figure 2. llustration of a Landslide Monitoring System workflow connecting slope monitoring devices, servers, dashboards, and early warning systems for continuous condition monitoring.

Why Is Baseline Data Important?

Baseline data provides an initial reference for comparing future conditions.

Without an adequate baseline, small changes in pore water pressure, inclination, or displacement can be more difficult to interpret in context.

For this reason, sensor verification, data quality checks, commissioning, and initial condition records should be carried out systematically before the system is used for trend evaluation.

Monitoring Systems Should Follow Slope Characteristics

Every slope has different soil, geological, drainage, and risk characteristics.

Sensor configuration, telemetry, power supply, measurement intervals, and warning mechanisms should therefore be designed around the technical requirements of each site.

PT Luwes Inovasi Mandiri provides Landslide Monitoring Systems that can be configured for mining areas, roads, dams, construction slopes, and hillside settlements.

The system can include geotechnical sensors, dataloggers, telemetry, servers, dashboards, and Early Warning System integration according to project requirements.

Build a slope monitoring system that matches your site characteristics and technical needs. Consult your sensor, telemetry, dashboard, and Early Warning System requirements with PT Luwes Inovasi Mandiri.
